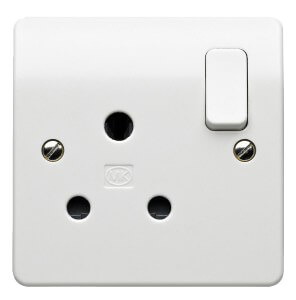

Power plug & outlet Type M

TYPE M

Type M is used almost exclusively in South Africa, Swaziland and Lesotho. (Click here for a complete list of all countries that use type M)

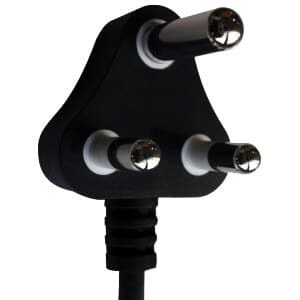

This plug resembles the Indian type D plug, but its pins are much larger. Type M is a 15 amp plug, and it has three round prongs that form a triangle. The central earth pin is 28.6 mm long and has a diameter of 8.7 mm. The 7.1 mm line and neutral pins are 18.6 mm long, on centres spaced 25.4 mm apart. The centre-to-centre distance between the grounding pin and the middle of the imaginary line connecting the two power pins is 28.6 mm. The South African version of the M plug often has insulated sleeves on the pins to prevent accidental contact with a bare connector while the plug is partially inserted. Although type D is used in India and Nepal, type M is also used for larger appliances. Some sockets over there can take both type M and type D plugs. Type M is also used in Israel and the United Arab Emirates for heavy appliances such as air-conditioning circuits (in cases where wall-mounted units are plugged in to a dedicated socket) and certain types of washing machines. In the UK, type M is still pretty much the standard plug for theatre installations, despite efforts to move to the international blue- and red-coloured industrial CEE plugs.
